microscope.mirror.mirao52e.Mirao52e Class Reference

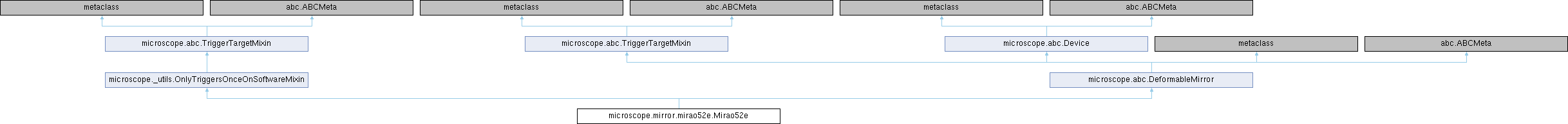

Inheritance diagram for microscope.mirror.mirao52e.Mirao52e:

Public Member Functions
None	__init__ (self, **kwargs)
int	n_actuators (self)
Public Member Functions inherited from microscope._utils.OnlyTriggersOnceOnSoftwareMixin
microscope.TriggerType	trigger_type (self)
microscope.TriggerMode	trigger_mode (self)
None	set_trigger (self, microscope.TriggerType ttype, microscope.TriggerMode tmode)
Public Member Functions inherited from microscope.abc.TriggerTargetMixin
Public Member Functions inherited from microscope.abc.DeformableMirror
None	apply_pattern (self, numpy.ndarray pattern)
None	queue_patterns (self, numpy.ndarray patterns)
None	next_pattern (self)
None	trigger (self)
Public Member Functions inherited from microscope.abc.Device
None	__del__ (self)
bool	get_is_enabled (self)
None	disable (self)
None	enable (self)
None	initialize (self)
None	shutdown (self)
None	add_setting (self, name, dtype, get_func, set_func, values, typing.Optional[typing.Callable[[], bool]] readonly=None)
	get_setting (self, str name)
	get_all_settings (self)
None	set_setting (self, str name, value)
	describe_setting (self, str name)
	describe_settings (self)
	update_settings (self, incoming, bool init=False)

Protected Member Functions
None	_do_apply_pattern (self, numpy.ndarray pattern)
None	_raise_status (self, typing.Callable func)
None	_do_shutdown (self)
Protected Member Functions inherited from microscope.abc.TriggerTargetMixin
Protected Member Functions inherited from microscope.abc.DeformableMirror
None	_validate_patterns (self, numpy.ndarray patterns)
None	_do_trigger (self)
Protected Member Functions inherited from microscope.abc.Device
	_do_disable (self)
	_do_enable (self)

Static Protected Member Functions
numpy.ndarray	_normalize_patterns (numpy.ndarray patterns)

Protected Attributes
	_status = ctypes.pointer(ctypes.c_int(mro.OK))
Protected Attributes inherited from microscope.abc.DeformableMirror
typing.Optional[numpy.ndarray]	_patterns = None
int	_pattern_idx = -1
Protected Attributes inherited from microscope.abc.Device
dict	_settings = {}

Additional Inherited Members
Public Attributes inherited from microscope.abc.DeformableMirror
Public Attributes inherited from microscope.abc.Device
bool	enabled = False

Detailed Description

Imagine Optic Mirao 52e deformable mirror.

The Mirao 52e deformable mirrors only support software trigger.

Definition at line 58 of file mirao52e.py.

Constructor & Destructor Documentation

__init__()

None microscope.mirror.mirao52e.Mirao52e.__init__	(		self,
		**	kwargs )

Reimplemented from microscope.abc.DeformableMirror.

Definition at line 68 of file mirao52e.py.

    def __init__(self, **kwargs) -> None:
        super().__init__(**kwargs)
        # Status is not the return code of the function calls.
        # Status is where we can find the error code in case a
        # function call returns false.  This _status variable will be
        # an argument in all function calls.
        self._status = ctypes.pointer(ctypes.c_int(mro.OK))
        if not mro.open(self._status):
            raise microscope.InitialiseError(
                "failed to open mirao mirror (error code %d)"
                % self._status.contents.value
            )


Member Function Documentation

_do_apply_pattern()

None microscope.mirror.mirao52e.Mirao52e._do_apply_pattern ( self, numpy.ndarray pattern )

protected

Reimplemented from microscope.abc.DeformableMirror.

Definition at line 94 of file mirao52e.py.

    def _do_apply_pattern(self, pattern: numpy.ndarray) -> None:
        pattern = self._normalize_patterns(pattern)
        command = pattern.ctypes.data_as(mro.Command)
        if not mro.applyCommand(command, mro.FALSE, self._status):
            self._raise_status(mro.applyCommand)


_do_shutdown()

None microscope.mirror.mirao52e.Mirao52e._do_shutdown ( self )

protected

Private method - actual shutdown of the device.

Users should be calling :meth:`shutdown` and not this method.
Concrete implementations should implement this method instead
of `shutdown`.

Reimplemented from microscope.abc.Device.

Definition at line 106 of file mirao52e.py.

    def _do_shutdown(self) -> None:
        if not mro.close(self._status):
            self._raise_status(mro.close)

_normalize_patterns()

numpy.ndarray microscope.mirror.mirao52e.Mirao52e._normalize_patterns ( numpy.ndarray patterns )

staticprotected

mirao52e SDK expects values in the [-1 1] range, so we normalize
them from the [0 1] range we expect in our interface.

Definition at line 86 of file mirao52e.py.

    def _normalize_patterns(patterns: numpy.ndarray) -> numpy.ndarray:
        """
        mirao52e SDK expects values in the [-1 1] range, so we normalize
        them from the [0 1] range we expect in our interface.
        """
        patterns = (patterns * 2) - 1
        return patterns


_raise_status()

None microscope.mirror.mirao52e.Mirao52e._raise_status ( self, typing.Callable func )

protected

Definition at line 100 of file mirao52e.py.

    def _raise_status(self, func: typing.Callable) -> None:
        error_code = self._status.contents.value
        raise microscope.DeviceError(
            "mro_%s() failed (error code %d)" % (func.__name__, error_code)
        )


n_actuators()

int microscope.mirror.mirao52e.Mirao52e.n_actuators

(

self

)

Reimplemented from microscope.abc.DeformableMirror.

Definition at line 82 of file mirao52e.py.

    def n_actuators(self) -> int:
        return mro.NB_COMMAND_VALUES


Member Data Documentation

_status

microscope.mirror.mirao52e.Mirao52e._status = ctypes.pointer(ctypes.c_int(mro.OK))

protected

Definition at line 74 of file mirao52e.py.

---

The documentation for this class was generated from the following file:

• BioImager/PythonMicroscope/microscope/mirror/mirao52e.py
