microscope.abc.DeformableMirror Class Reference

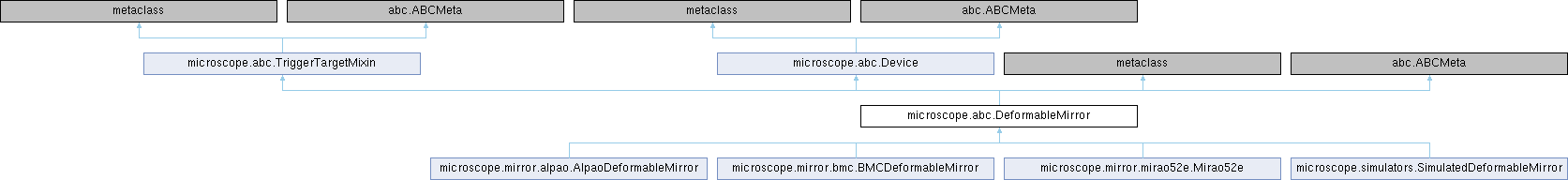

Inheritance diagram for microscope.abc.DeformableMirror:

Public Member Functions
None	__init__ (self, **kwargs)
int	n_actuators (self)
None	apply_pattern (self, numpy.ndarray pattern)
None	queue_patterns (self, numpy.ndarray patterns)
None	next_pattern (self)
None	trigger (self)
Public Member Functions inherited from microscope.abc.TriggerTargetMixin
microscope.TriggerMode	trigger_mode (self)
microscope.TriggerType	trigger_type (self)
None	set_trigger (self, microscope.TriggerType ttype, microscope.TriggerMode tmode)
Public Member Functions inherited from microscope.abc.Device
None	__del__ (self)
bool	get_is_enabled (self)
None	disable (self)
None	enable (self)
None	initialize (self)
None	shutdown (self)
None	add_setting (self, name, dtype, get_func, set_func, values, typing.Optional[typing.Callable[[], bool]] readonly=None)
	get_setting (self, str name)
	get_all_settings (self)
None	set_setting (self, str name, value)
	describe_setting (self, str name)
	describe_settings (self)
	update_settings (self, incoming, bool init=False)

Public Attributes
	n_actuators
Public Attributes inherited from microscope.abc.Device
bool	enabled = False

Protected Member Functions
None	_validate_patterns (self, numpy.ndarray patterns)
None	_do_apply_pattern (self, numpy.ndarray pattern)
None	_do_trigger (self)
Protected Member Functions inherited from microscope.abc.TriggerTargetMixin
Protected Member Functions inherited from microscope.abc.Device
	_do_disable (self)
	_do_enable (self)
None	_do_shutdown (self)

Protected Attributes
typing.Optional[numpy.ndarray]	_patterns = None
int	_pattern_idx = -1
Protected Attributes inherited from microscope.abc.Device
dict	_settings = {}

Detailed Description

Base class for Deformable Mirrors.

There is no method to reset or clear a deformable mirror.  While
different vendors provide functions to do that, it is unclear
exactly what it does the actuators.  Does it set all actuators
back to something based on a calibration file?  Does it apply a
voltage of zero to each?  Does it set the values to zero and what
does that mean since different deformable mirrors expect values in
a different range?  For the sake of uniformity, it is better for
python-microscope users to pass the pattern they want, probably a
pattern that flattens the mirror.

It is also unclear what the use case for a reset.  If it just to
set the mirror to an initial state and not a specific shape, then
destroying and re-constructing the DeformableMirror object
provides the most obvious solution.

The private properties `_patterns` and `_pattern_idx` are
initialized to `None` to support the queueing of patterns and
software triggering.

Definition at line 1051 of file abc.py.

Constructor & Destructor Documentation

__init__()

None microscope.abc.DeformableMirror.__init__	(		self,
		**	kwargs )

Reimplemented from microscope.abc.Device.

Definition at line 1076 of file abc.py.

    def __init__(self, **kwargs) -> None:
        super().__init__(**kwargs)
        self._patterns: typing.Optional[numpy.ndarray] = None
        self._pattern_idx: int = -1


Member Function Documentation

_do_apply_pattern()

None microscope.abc.DeformableMirror._do_apply_pattern ( self, numpy.ndarray pattern )

protected

Definition at line 1110 of file abc.py.

    def _do_apply_pattern(self, pattern: numpy.ndarray) -> None:
        raise NotImplementedError()


_do_trigger()

None microscope.abc.DeformableMirror._do_trigger ( self )

protected

Convenience fallback.

This only provides a convenience fallback for devices that
don't support queuing multiple patterns and software trigger,
i.e., devices that take only one pattern at a time.  This is
not the case of most devices.

Devices that support queuing patterns, should override this
method.

.. todo::

    Instead of a convenience fallback, we should have a
    separate mixin for this.

Reimplemented from microscope.abc.TriggerTargetMixin.

Definition at line 1156 of file abc.py.

    def _do_trigger(self) -> None:
        """Convenience fallback.

        This only provides a convenience fallback for devices that
        don't support queuing multiple patterns and software trigger,
        i.e., devices that take only one pattern at a time.  This is
        not the case of most devices.

        Devices that support queuing patterns, should override this
        method.

        .. todo::

            Instead of a convenience fallback, we should have a
            separate mixin for this.

        """
        if self._patterns is None:
            raise microscope.DeviceError("no pattern queued to apply")
        self._pattern_idx += 1
        self.apply_pattern(self._patterns[self._pattern_idx, :])


_validate_patterns()

None microscope.abc.DeformableMirror._validate_patterns ( self, numpy.ndarray patterns )

protected

Validate the shape of a series of patterns.

Only validates the shape of the patterns, not if the values
are actually in the [0 1] range.  If some hardware is unable
to handle values outside their defined range (most will simply
clip them), then it's the responsability of the subclass to do
the clipping before sending the values.

Definition at line 1086 of file abc.py.

    def _validate_patterns(self, patterns: numpy.ndarray) -> None:
        """Validate the shape of a series of patterns.

        Only validates the shape of the patterns, not if the values
        are actually in the [0 1] range.  If some hardware is unable
        to handle values outside their defined range (most will simply
        clip them), then it's the responsability of the subclass to do
        the clipping before sending the values.

        """
        if patterns.ndim > 2:
            raise ValueError(
                "PATTERNS has %d dimensions (must be 1 or 2)" % patterns.ndim
            )
        elif patterns.shape[-1] != self.n_actuators:
            raise ValueError(
                (
                    "PATTERNS length of second dimension '%d' differs"
                    " from number of actuators '%d'"
                    % (patterns.shape[-1], self.n_actuators)
                )
            )


apply_pattern()

None microscope.abc.DeformableMirror.apply_pattern	(		self,
		numpy.ndarray	pattern )

Apply this pattern.

Raises:
    microscope.IncompatibleStateError: if device trigger type is
        not set to software.

Definition at line 1113 of file abc.py.

    def apply_pattern(self, pattern: numpy.ndarray) -> None:
        """Apply this pattern.

        Raises:
            microscope.IncompatibleStateError: if device trigger type is
                not set to software.

        """
        if self.trigger_type is not microscope.TriggerType.SOFTWARE:
            # An alternative to error is to change the trigger type,
            # apply the pattern, then restore the trigger type, but
            # that would clear the queue on the device.  It's better
            # to have the user specifically do it.  See issue #61.
            raise microscope.IncompatibleStateError(
                "apply_pattern requires software trigger type"
            )
        self._validate_patterns(pattern)
        self._do_apply_pattern(pattern)


n_actuators()

int microscope.abc.DeformableMirror.n_actuators

(

self

)

Definition at line 1083 of file abc.py.

    def n_actuators(self) -> int:
        raise NotImplementedError()


next_pattern()

None microscope.abc.DeformableMirror.next_pattern

(

self

)

Apply the next pattern in the queue.

DEPRECATED: this is the same as calling :meth:`trigger`.

Definition at line 1148 of file abc.py.

    def next_pattern(self) -> None:
        """Apply the next pattern in the queue.

        DEPRECATED: this is the same as calling :meth:`trigger`.

        """
        self.trigger()


queue_patterns()

None microscope.abc.DeformableMirror.queue_patterns	(		self,
		numpy.ndarray	patterns )

Send values to the mirror.

Args:
    patterns: An `KxN` elements array of values in the range
        `[0 1]`, where `N` equals the number of actuators, and
        `K` is the number of patterns.

A convenience fallback is provided for software triggering is
provided.

Reimplemented in microscope.mirror.alpao.AlpaoDeformableMirror.

Definition at line 1132 of file abc.py.

    def queue_patterns(self, patterns: numpy.ndarray) -> None:
        """Send values to the mirror.

        Args:
            patterns: An `KxN` elements array of values in the range
                `[0 1]`, where `N` equals the number of actuators, and
                `K` is the number of patterns.

        A convenience fallback is provided for software triggering is
        provided.

        """
        self._validate_patterns(patterns)
        self._patterns = patterns
        self._pattern_idx = -1  # none is applied yet


trigger()

None microscope.abc.DeformableMirror.trigger

(

self

)

Apply the next pattern in the queue.

Reimplemented from microscope.abc.TriggerTargetMixin.

Definition at line 1178 of file abc.py.

    def trigger(self) -> None:
        """Apply the next pattern in the queue."""
        # This is just a passthrough to the TriggerTargetMixin class
        # and only exists for the docstring.
        return super().trigger()



Member Data Documentation

_pattern_idx

microscope.abc.DeformableMirror._pattern_idx = -1

protected

Definition at line 1079 of file abc.py.

_patterns

typing.Optional[numpy.ndarray] microscope.abc.DeformableMirror._patterns = None

protected

Definition at line 1078 of file abc.py.

n_actuators

microscope.abc.DeformableMirror.n_actuators

Definition at line 1105 of file abc.py.

---

The documentation for this class was generated from the following file:

• BioImager/PythonMicroscope/microscope/abc.py
