microscope.testsuite.mock_devices.CoboltLaserMock Class Reference

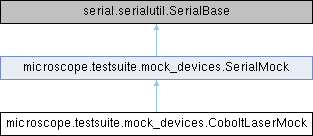

Inheritance diagram for microscope.testsuite.mock_devices.CoboltLaserMock:

Public Member Functions
def	__init__ (self, *args, **kwargs)
def	handle (self, command)
Public Member Functions inherited from microscope.testsuite.mock_devices.SerialMock
def	__init__ (self, *args, **kwargs)
def	open (self)
def	close (self)
def	handle (self, command)
def	write (self, data)
def	read (self, size=1)
def	readline (self, size=-1)
def	reset_input_buffer (self)
def	reset_output_buffer (self)

Public Attributes
	power
	light
	interlock_open
	auto_start
	direct_control
	on_after_interlock
	fault
Public Attributes inherited from microscope.testsuite.mock_devices.SerialMock
	in_buffer
	out_buffer
	out_pending_bytes
	out_parsed_bytes
	in_read_bytes

Static Public Attributes
string	eol = b"\r"
int	baudrate = 115200
	parity = serial.PARITY_NONE
	bytesize = serial.EIGHTBITS
	stopbits = serial.STOPBITS_ONE
bool	rtscts = False
bool	dsrdtr = False
float	default_power = 50.0
float	min_power = 0.0
float	max_power = 600.0

Detailed Description

Modelled after a Cobolt Jive laser 561nm.

Definition at line 316 of file mock_devices.py.

Constructor & Destructor Documentation

__init__()

def microscope.testsuite.mock_devices.CoboltLaserMock.__init__	(		self,
		*	args,
		**	kwargs
	)

Reimplemented from microscope.testsuite.mock_devices.SerialMock.

Definition at line 333 of file mock_devices.py.

    def __init__(self, *args, **kwargs):
        super().__init__(*args, **kwargs)

        self.power = CoboltLaserMock.default_power
        self.light = False

        self.interlock_open = False

        self.auto_start = False
        self.direct_control = False

        self.on_after_interlock = False

        self.fault = None


Member Function Documentation

handle()

def microscope.testsuite.mock_devices.CoboltLaserMock.handle	(		self,
			command
	)

Reimplemented from microscope.testsuite.mock_devices.SerialMock.

Definition at line 348 of file mock_devices.py.

    def handle(self, command):
        # Leading and trailing whitespace is ignored.
        command = command.strip()

        # Acknowledgment string if command is not a query and there
        # is no error.
        answer = b"OK"

        if command == b"sn?":  # serial number
            answer = b"7863"
        elif command == b"gcn?":
            answer = b"Macro-Gen5b-SHG-0501_4W-RevA"
        elif command == b"ver?" or command == b"gfv?":
            answer = b"50070"
        elif command == b"gfvlas?":
            answer = b"This laser head does not have firmware."
        elif command == b"hrs?":  # System operating hours
            answer = b"828.98"

        # TODO: This whole @cob0 and @cob1 need better testing on
        # what it actually does.  Documentation says that @cob1 is
        # "Laser ON after interlock.  Forces laser into
        # autostart. without checking if autostart is enabled".
        # @cob0 is undocumented.

        # May be a bug but the commands @cob0 and @cob1 both have the
        # effect of also turning off the laser.
        elif command == b"@cob1":
            self.on_after_interlock = True
            self.light = False
        elif command == b"@cob0":
            self.on_after_interlock = False
            self.light = False

        elif command == b"@cobas?":
            answer = b"1" if self.auto_start else b"0"
        elif command == b"@cobas 0":
            self.auto_start = False
        elif command == b"@cobas 1":
            self.auto_start = True

        # Laser state
        elif command == b"l?":
            answer = b"1" if self.light else b"0"
        elif command == b"l1":
            if self.auto_start:
                answer = b"Syntax error: not allowed in autostart mode."
            else:
                self.light = True
        elif command == b"l0":
            self.light = False

        # Output power
        elif command.startswith(b"p "):
            # The p command takes values in W so convert to mW
            new_power = float(command[2:]) * 1000.0
            if new_power > self.max_power or new_power < self.min_power:
                answer = b"Syntax error: Value is out of range."
            else:
                self.power = new_power
        elif command == b"p?":
            answer = b"%.4f" % (self.power / 1000.0)
        elif command == b"pa?":
            if self.light:
                answer = b"%.4f" % (self.power / 1000.0)
            else:
                answer = b"0.0000"

        # Undocumented.  Seems to be the same as 'p ...'
        elif command.startswith(b"@cobasp "):
            return self.handle(command[6:])

        # Direct control
        elif command == b"@cobasdr?":
            answer = b"1" if self.direct_control else b"0"
        elif command == b"@cobasdr 0":
            self.direct_control = False
        elif command == b"@cobasdr 1":
            self.direct_control = False

        # Undocumented.  Seems to returns maximum laser power in mW.
        elif command == b"gmlp?":
            answer = b"600.000000"

        # Are you there?
        elif command == b"?":
            answer = b"OK"

        # Get operating fault
        elif command == b"f?":
            # The errors (which we don't model yet) are:
            #   1 = temperature error
            #   3 = interlock
            #   4 = constant power fault
            answer = b"0"

        # Interlock state
        elif command == b"ilk?":
            answer = b"1" if self.interlock_open else b"0"

        # Autostart program state
        elif command == b"cobast?":
            # This is completely undocumented.  Manual
            # experimentation seems to be:
            # 0 = laser off with @cob0
            # 1 = laser off with @cob1
            # 2 = waiting for temperature
            # 3 = warming up
            # 4 = completed (laser on)
            # 5 = fault (such as interlock)
            # 6 = aborted
            if self.light:
                answer = b"4"
            else:
                answer = b"1" if self.on_after_interlock else b"0"

        else:
            raise NotImplementedError(
                "no handling for command '%s'" % command.decode("utf-8")
            )

        # Sending a command is done with '\r' only.  However,
        # responses from the hardware end with '\r\n'.
        self.in_buffer.write(answer + b"\r\n")



Referenced by microscope.cameras._SDK3Cam.SDK3Camera.__init__(), microscope.cameras.pvcam.PVCamera.abort(), microscope.cameras.andorsdk3.AndorSDK3.get_id(), microscope.cameras.andorsdk3.AndorSDK3.initialize(), microscope.cameras.pvcam.PVCamera.initialize(), microscope.cameras.andorsdk3.AndorSDK3.invalidate_buffers(), microscope.cameras.pvcam.PVCamera.set_trigger(), and microscope.cameras.pvcam.PVCamera.soft_trigger().

Member Data Documentation

auto_start

microscope.testsuite.mock_devices.CoboltLaserMock.auto_start

Definition at line 341 of file mock_devices.py.

baudrate

int microscope.testsuite.mock_devices.CoboltLaserMock.baudrate = 115200

static

Definition at line 321 of file mock_devices.py.

bytesize

microscope.testsuite.mock_devices.CoboltLaserMock.bytesize = serial.EIGHTBITS

static

Definition at line 323 of file mock_devices.py.

default_power

float microscope.testsuite.mock_devices.CoboltLaserMock.default_power = 50.0

static

Definition at line 329 of file mock_devices.py.

direct_control

microscope.testsuite.mock_devices.CoboltLaserMock.direct_control

Definition at line 342 of file mock_devices.py.

dsrdtr

bool microscope.testsuite.mock_devices.CoboltLaserMock.dsrdtr = False

static

Definition at line 326 of file mock_devices.py.

eol

string microscope.testsuite.mock_devices.CoboltLaserMock.eol = b"\r"

static

Definition at line 319 of file mock_devices.py.

Referenced by microscope.filterwheels.thorlabs.ThorlabsFilterWheel.__init__().

fault

microscope.testsuite.mock_devices.CoboltLaserMock.fault

Definition at line 346 of file mock_devices.py.

interlock_open

microscope.testsuite.mock_devices.CoboltLaserMock.interlock_open

Definition at line 339 of file mock_devices.py.

light

microscope.testsuite.mock_devices.CoboltLaserMock.light

Definition at line 337 of file mock_devices.py.

max_power

float microscope.testsuite.mock_devices.CoboltLaserMock.max_power = 600.0

static

Definition at line 331 of file mock_devices.py.

min_power

float microscope.testsuite.mock_devices.CoboltLaserMock.min_power = 0.0

static

Definition at line 330 of file mock_devices.py.

on_after_interlock

microscope.testsuite.mock_devices.CoboltLaserMock.on_after_interlock

Definition at line 344 of file mock_devices.py.

parity

microscope.testsuite.mock_devices.CoboltLaserMock.parity = serial.PARITY_NONE

static

Definition at line 322 of file mock_devices.py.

power

microscope.testsuite.mock_devices.CoboltLaserMock.power

Definition at line 336 of file mock_devices.py.

rtscts

bool microscope.testsuite.mock_devices.CoboltLaserMock.rtscts = False

static

Definition at line 325 of file mock_devices.py.

stopbits

microscope.testsuite.mock_devices.CoboltLaserMock.stopbits = serial.STOPBITS_ONE

static

Definition at line 324 of file mock_devices.py.

---

The documentation for this class was generated from the following file:

• F:/repos/BioImager/BioImager/PythonMicroscope/microscope/testsuite/mock_devices.py
